Monocrystalline Diamond Powder NMSM-NORIAN

Monocrystalline Diamond Powder NMSM

1.04.00001~1.04.00013

Characteristics

It is produced by HPHT synthesis. The diamond particles have sharp edges and high hardness. Because of its self-sharpening mechanism, it increases diamond tools life. Monocrystalline diamond powder is a popular choice for precision grinding and polishing.

Available Size

0.125μm-65μm

Applications

◆ Semiconductor processing: silicon wafers, germanium, gallium arsenide, indium phosphide, silicon carbide, gallium nitride and other semiconductor materials.

◆ Sapphire processing: sapphire substrates, LED chips, optics lens, watch or clock galss, mobile phone fingerprint recognition films, etc.

◆ Ceramic and Metal processing: ceramic materials such as zirconia ceramic special-shaped parts, aluminum nitride substrates, mobile phone ceramic covers, watch ceramic structural parts, stainless steel, aluminum parts, copper parts, mold steel, mobile phone backplane, and other super hard alloy metal materials.

◆ Grinding liquid and pads: cooperate with diamond suspension & slurry or diamond pads manufacture.

Part of Specifications

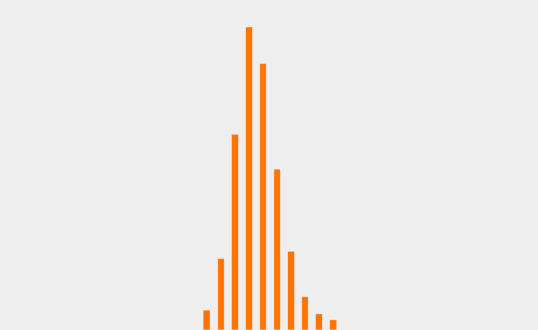

Precision Range
Structure Diagram

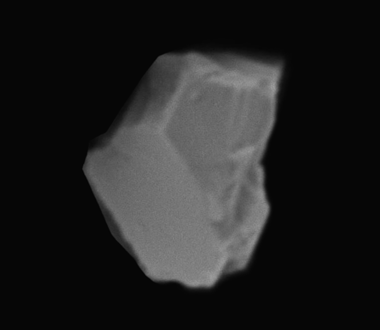

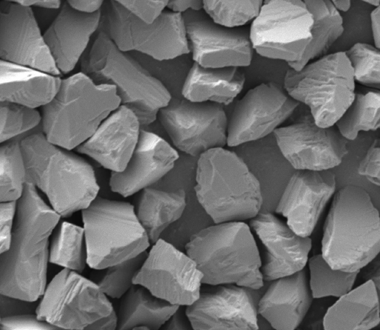

Microscopic View

Details list

Order Number	Grit size micron	Median(D50) micron	Median tolerance micron	Upper limit(D99) micron
1.04.00001	0-0.02	0.012	0.0115-0.0125	0.0234
1.04.00002	0.02-0.04	0.025	0.024-0.026	0.0488
1.04.00003	0.04-0.07	0.05	0.048-0.052	5.85
1.04.00004	0.06-0.1	0.075	0.072-0.078	0.146
1.04.00005	0.06-0.15	0.09	0.087-0.094	0.176
1.04.00006	0.1-0.2	0.125	0.12-0.13	0.244
1.04.00007	0.15-0.25	0.18	0.173-0.187	0.351
1.04.00008	0.15-0.3	0.21	0.202-0.218	0.41
1.04.00009	0.25-0.5	0.35	0.337-0.364	0.683
1.04.00010	0.35-0.75	0.5	0.481-0.52	0.975
1.04.00011	0.35-0.85	0.55	0.529-0.572	1.073
1.04.00012	0.5-1	0.71	0.68-0.74	1.38
1.04.00013	0.75-1.5	0.9	0.87-0.94	1.76

Other diamond concentrations Diamond type/grit size are available.

Product Data Sheet

Diamond Powder NMS Datasheet
