CuSn15 Powder for Diamond Tools

NA-CuSn15

Characteristics

With high-purity cathode copper and No. 1 tin ingot as the main raw materials, water vapor combined atomization technology is adopted to prepare fully alloyed copper-tin pre-alloy powder. The product has good batch stability, uniform and stable particle size distribution, and low oxygen content. The sintering alloy and sintering temperature range can be adjusted in the production, reducing the loss of low-melting-point metals and improving the utilization of low-melting-point metals, thereby improving the performance of the products.

Available Size

0~15μm

Contact us to view more

Applications

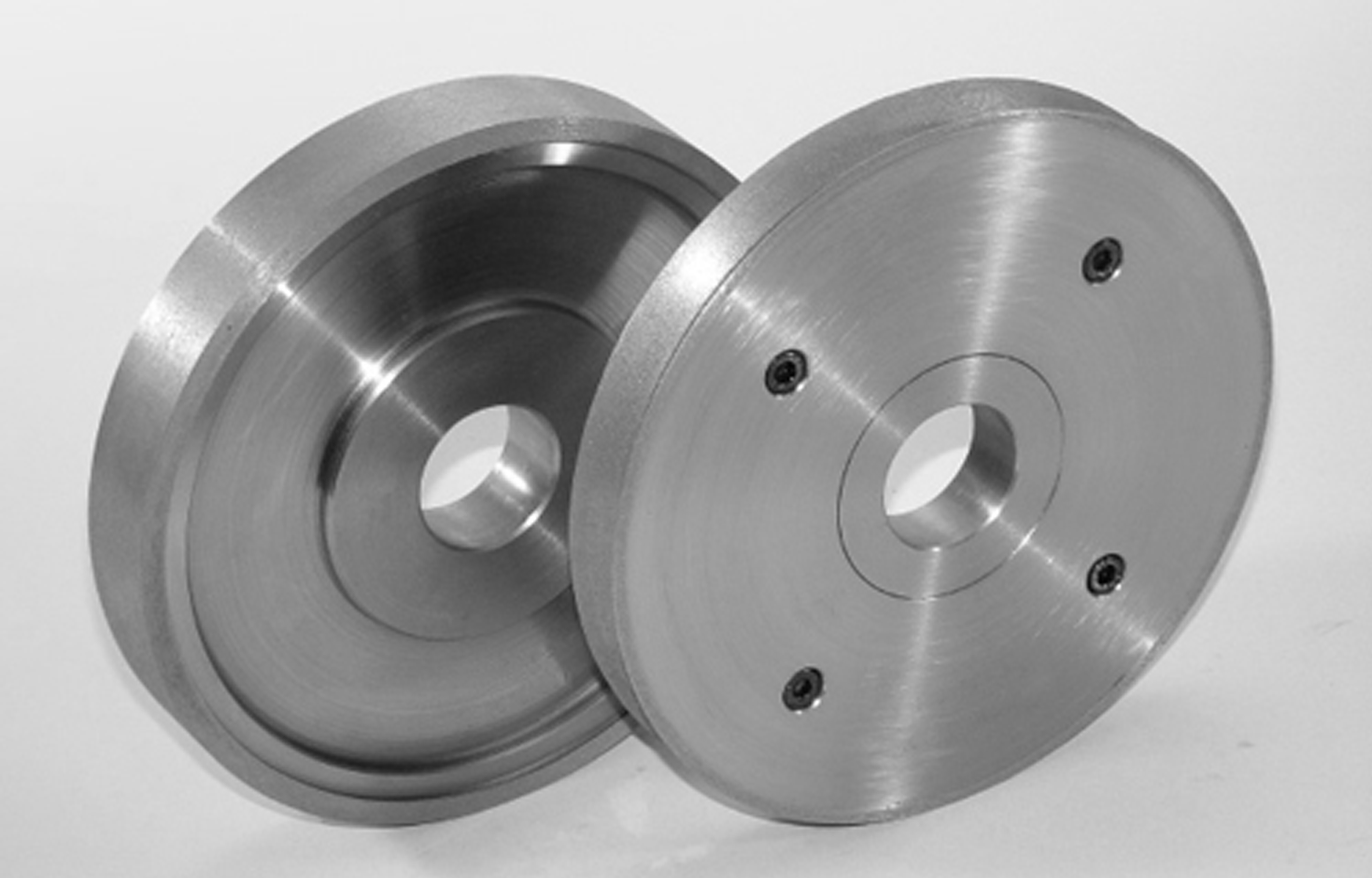

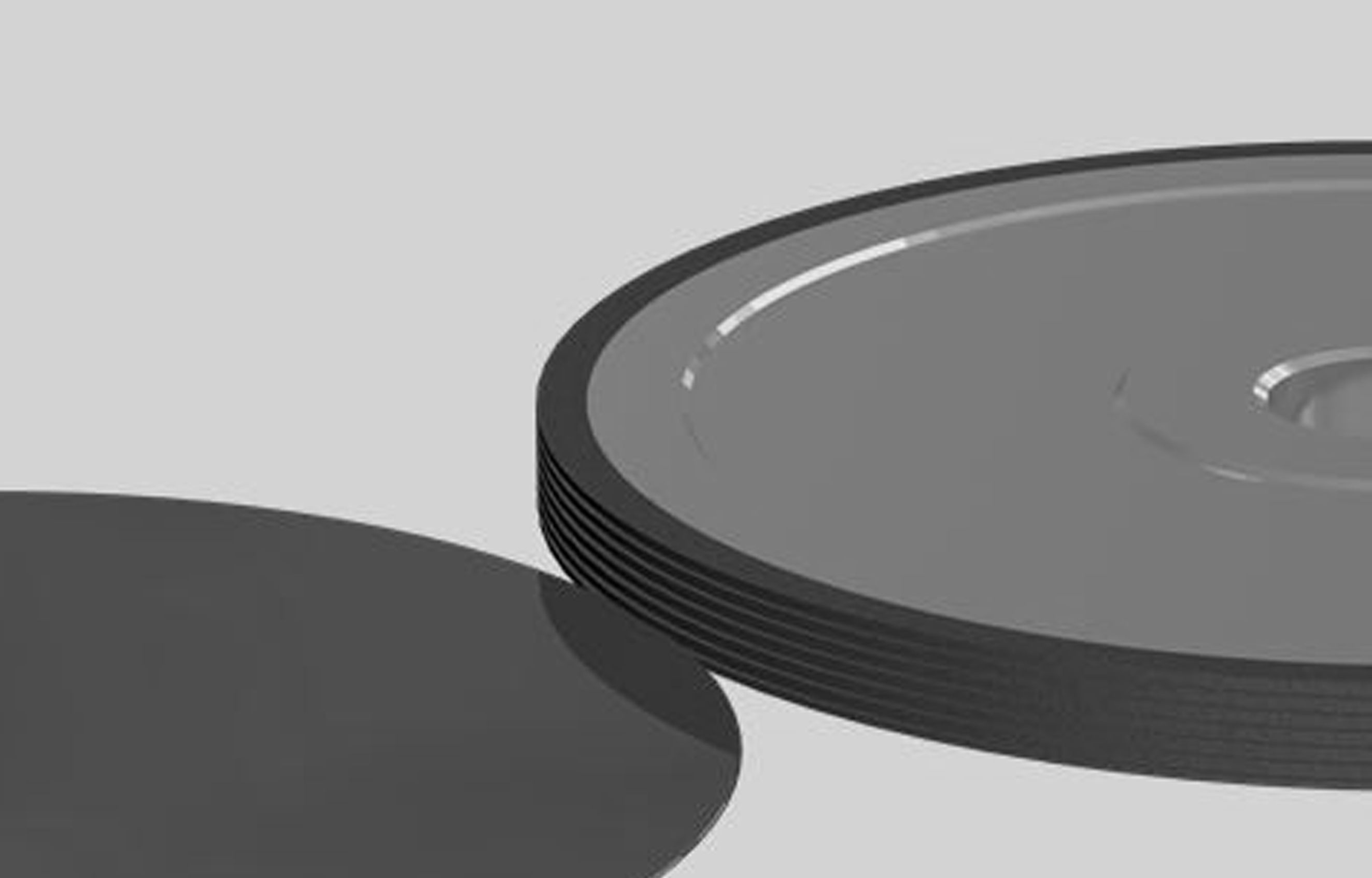

It is mainly used as the basic powder for various diamond tools, replacing part of the elemental copper and tin, reducing the amount of copper and tin, reducing material flow, and improving the stability of products.

Part of Specifications

Main ingredients: Cu85% Sn15% | Theoretical density: 8.66g/cm3 | Particle size range: D50≤14μm | Oxygen content: ≤0.12% | Bulk density: 3.3-3.6g/cm³
